具体操作步骤如下：
(A) 用无尘纸清洁载玻片及盖玻片 (大小: 22 x 30mm, 24 x 32mm, 或24 x 40mm) ；

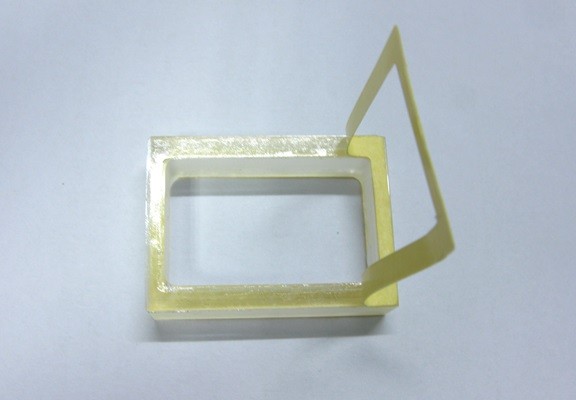

(B) 撕掉 iSpacers上面的保护膜；
注: 同样应用于货号# IS004 和IS005iSpacer。(C)将iSpacer粘性面朝下贴在载玻片或盖玻片的干燥表面上。 轻轻按压密封；
(D) 撕掉 iSpacers另一面上面的保护膜；
(E)可通过添加多个垫片增加样品孔深度。
(F) 撕掉增加的垫片保护膜；
(G) 在样品孔中加入适量的RapiClear；
(H) 将样品放入孔中；
(I) 用RapiClear填满孔；
(J) 盖上盖玻片，密封好样品；
使用视频：

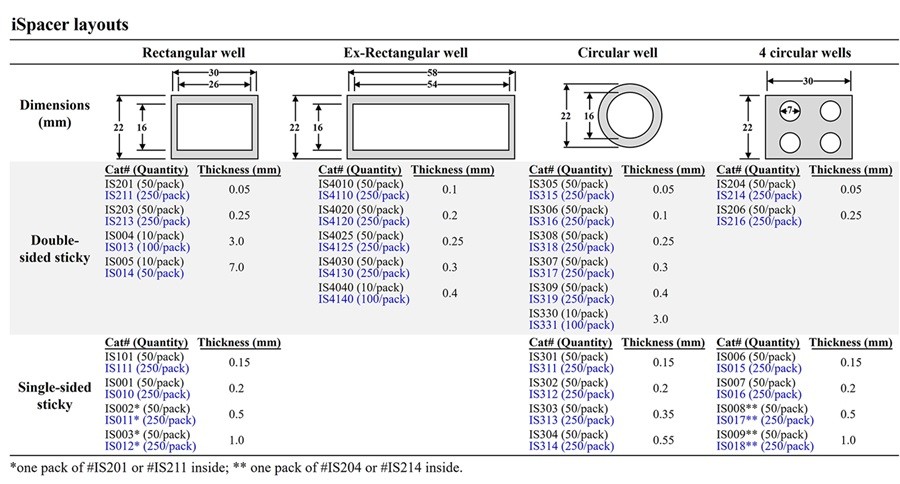

根据您的实验需要，选择合适的iSpacer:
Single-sided sticky
|
货号 |
孔数 |
规格 |
体积 |
包装 |
|
IS101 |
1 |
26 x 16 mm, 0.15 mm deep |
75ul |
50/pack |
|
IS111 (value pack) 1 |
1 |
26 x 16 mm, 0.15 mm deep |
75ul |
250/pack |
|
IS001 |
1 |
26 x 16 mm, 0.2 mm deep |
100ul |
50/pack |
|
IS010 (value pack) |
1 |
26 x 16 mm, 0.2 mm deep |
100ul |
250/pack |
|
IS002 |
1 |
26 x 16 mm, 0.5 mm deep |
250ul |
50/pack |
|
IS011 (value pack) |
1 |
26 x 16 mm, 0.5 mm deep |
250ul |
250/pack |
|
IS003 |
1 |
26 x 16 mm, 1.0 mm deep |
500ul |
50/pack |
|
IS012 (value pack) |
1 |
26 x 16 mm, 1.0 mm deep |
500ul |
250/pack |
|
IS004 |
1 |
26 x 16 mm, 3.0 mm deep |
1.5ml |
50/pack |
|
IS005 |
1 |
26 x 16 mm, 7.0 mm deep |
3.5ml |
50/pack |
|
IS006 |
4 |
7mm diameter, 0.15 mm deep |
12ul/each |
50/pack |
|
IS015 (value pack) |
4 |
7mm diameter, 0.15 mm deep |
12ul/each |
250/pack |
|
IS007 |
4 |
7mm diameter, 0.2 mm deep |
15ul/each |
50/pack |
|
IS016 (value pack) |
4 |
7mm diameter, 0.2 mm deep |
15ul/each |
250/pack |
|
IS008 |
4 |
7mm diameter, 0.5 mm deep |
35ul/each |
50/pack |
|
IS017 (value pack) |
4 |
7mm diameter, 0.5 mm deep |
35ul/each |
250/pack |
|
IS009 |
4 |
7mm diameter, 1.0 mm deep |
75ul/each |
50/pack |
|
IS018 (value pack) |
4 |
7mm diameter, 1.0 mm deep |
75ul/each |
250/pack |
Double-sided sticky :
货号 |
孔数 |
规格 |
体积 |
包装 |
|
IS201 |
1 |
26 x 16 mm, 0.05 mm deep |
25ul |
50/pack |
|
IS211 (value pack) |
1 |
26 x 16 mm, 0.05 mm deep |
25ul |
250/pack |
|
IS203 |
1 |
26 x 16 mm, 0.25 mm deep |
125ul |
50/pack |
|
IS213 (value pack) |
1 |
26 x 16 mm, 0.25 mm deep |
125ul |
250/pack |
|
IS004 |
1 |
26 x 16 mm, 3.0 mm deep |
1.5ml |
10/pack |
|
IS013 (value pack) |
1 |
26 x 16 mm, 3.0 mm deep |
1.5ml |
100/pack |
|
IS005 |
1 |
26 x 16 mm, 7.0 mm deep |
3.5ml |
10/pack |
|
IS014 (value pack) |
1 |
26 x 16 mm, 7.0 mm deep |
3.5ml |
100/pack |
|
IS204 |
4 |
26 x 16 mm, 0.05 mm deep |
4ul/each |
50/pack |
|
IS214 (value pack) |
4 |
26 x 16 mm, 0.05 mm deep |
4ul/each |
250/pack |
|
IS206 |
4 |
7mm diameter, 0.25 mm deep |
18ul/each |
50/pack |
|
IS216 (value pack) |
4 |
7mm diameter, 0.25 mm deep |
18ul/each |
250/pack |
